SMARTXIDE2
agile and accurate
The SmartXide2 – a 10,600 nm CO₂ laser with a maximum power of 80 watts. All SmartXide2 can optionally be equipped with a diode. The flexibility and simple operation of the diode laser with the speed and precision of the CO2 laser makes the SmartXide2 a unique system all over the world.
Features
Diode and CO2 RF laser source with PSD®
High precision scanning systems
Micromanipulator with exclusive Hybrid Technology
Accessories
HiScan Surgical
HiScan Surgical
One of the most precise instrument for ensuring a well- defined, uniform and controlled laser ablation.
- Max. Scanning Area: 6.3 mm @ 400 mm EFL
- Dwell Time: From 100 us to 45 ms
- Selectable Ablation Depth: From 0.2 to 2 mm
- Scanning Modes: Power Mode and Depth Mode
- Scanning Shapes: Line, arc of a circle up to complete the circle, spiral, hexagon (with normal and interlaced scan mode), ellipsoid motion on a circular surface
- Emission Mode: Continuous Wave (CW) - Ultimate Pulse (UP)
EasySpot Hybrid Micromanipulator
EasySpot Hybrid Micromanipulator
One of the best optical system that ensures a perfect focusing match between the guide beam and the CO2 laser. It is adaptable to
the most common surgical microscopes and colposcopes.
- Optical Technology: Hybrid - Holographic and mirrors
- Spot Size: Min 140 μm - Max 4.5 mm
- Operative Field: @ 400 mm EFL Min 20 x 18 mm - Max 55 x 40 mm
- Joystick Controls: Rotation and ablation shape dimension, Scan-ON/Scan-OFF, centering fine tuning

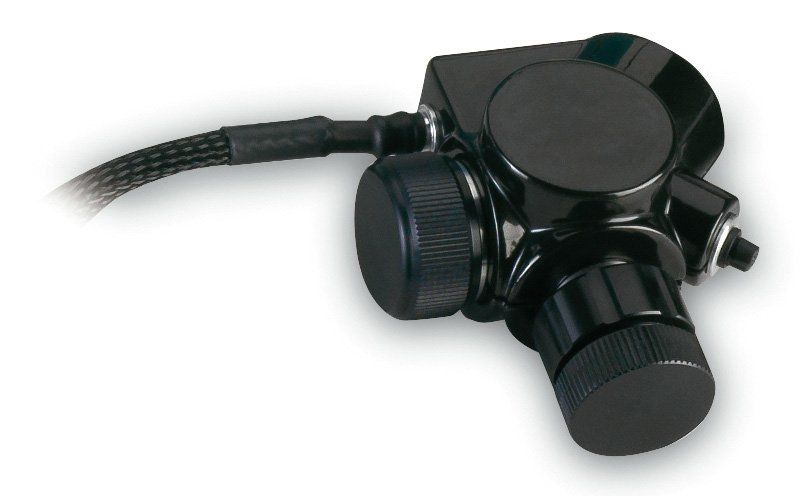

EndoScan
EndoScan
The scanner system for laparoscopic gynaecological surgery and general surgery.
- Optical Technology: 5mm @ 300 mm EFL; 6.3 mm @ 400 mm
- Dwell Time : From 100 μs to 1000 μs
- Scanning Shapes: Point (CutMode), Circle, Clover
- Emission Modes: Continuous Wave (CW) - Ultimate Pulse (UP)
